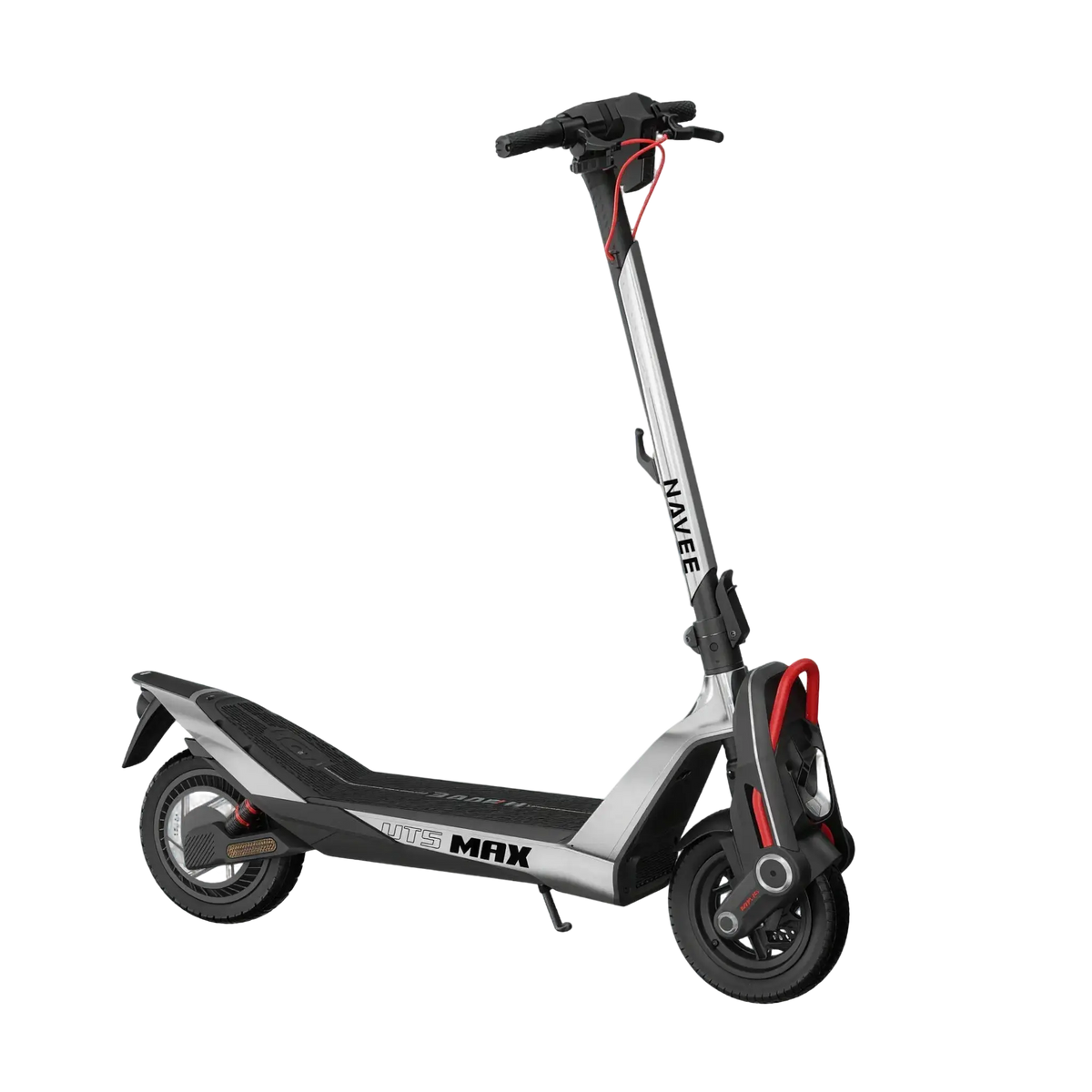

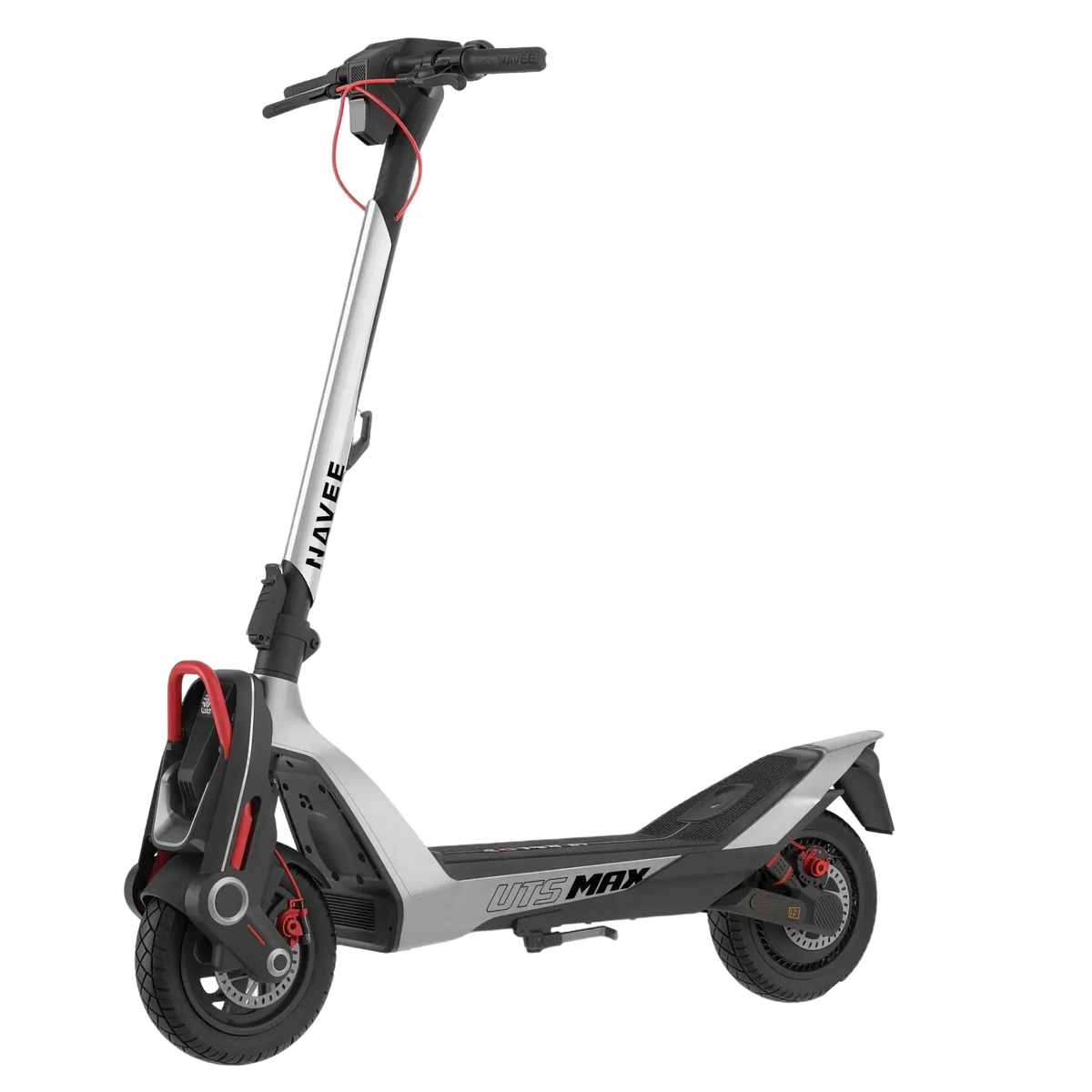

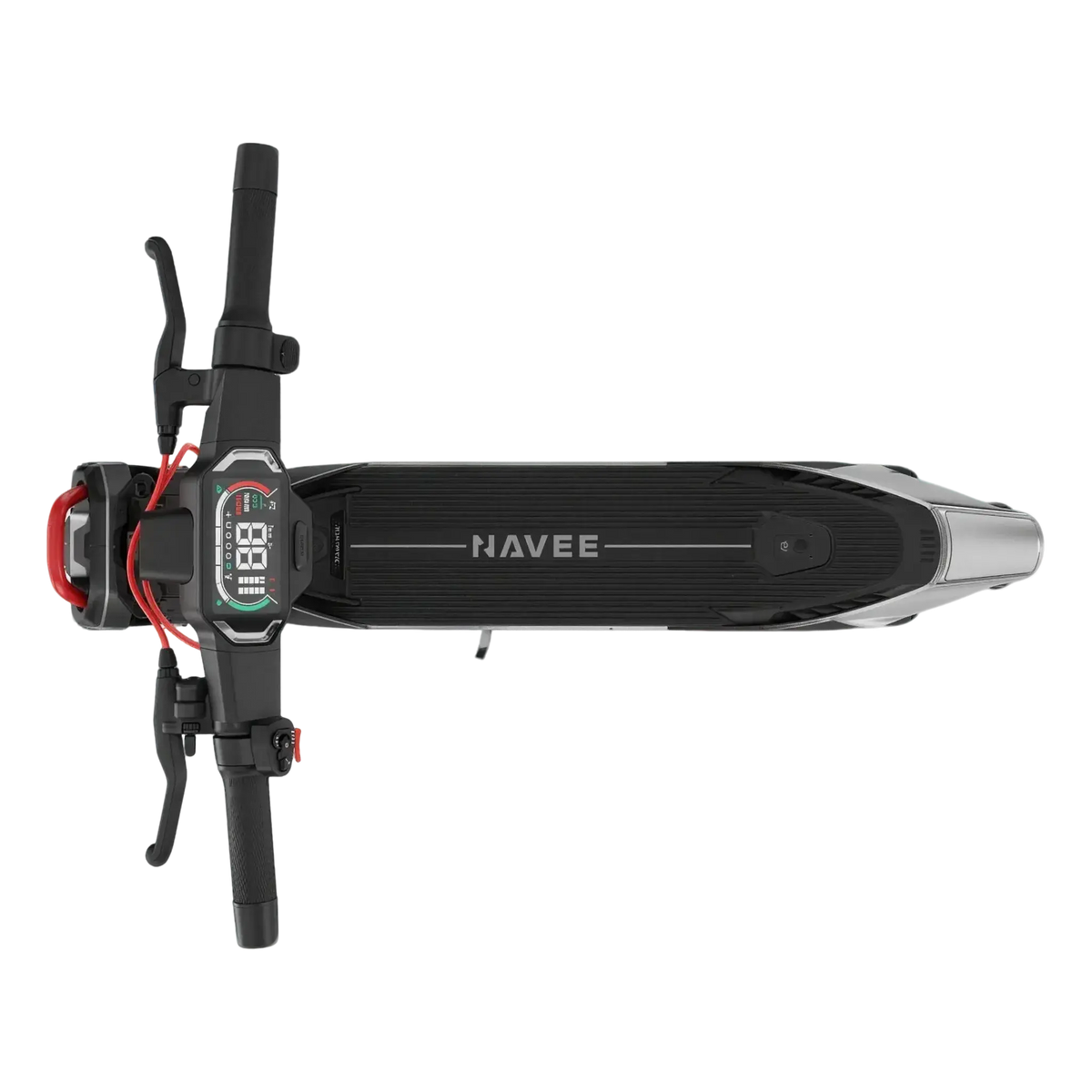

NAVEE UT5 Max
NAVEE UT5 Max e-scooter. Built for rough terrain, with all-terrain tyres, quadruple suspension and a long range.
Full specifications NAVEE UT5 Max
General information
- Certification model: UT5 Max
- Max. load: 150 kg
- Max. climbing ability: 39%, 28% at 150 kg load
- Factory-set max. speed: 6 / 15 / 22 km/h
- Suitable for: ages 16 to 50
Battery
- Battery voltage: 46.8 V
- Battery capacity: 716.04 Wh
- Cell type: 18650 (13s6p)
- Cell capacity: 15.3 Ah
- Battery weight: 4200 g
Performance
- Rated power: 500 W (EU certification). Global figure: 2 x 700 W
- Max. power: 2400 W
- Drive: dual motor
- Range (15 km/h): 100 km
- Range (20 km/h): 82 km
- Range (25 km/h): 65 km
Charging and features
- Charging time (standard): 7 hours with 3.75 A charger
- Charging time (fast): 2 hours with 10 A charger
- Water resistance rating: IPX6
- Bluetooth: yes
- Smart app: NAVEE App
- Apple Find My: yes (iOS)
Dimensions and weight
- Dimensions (unfolded): 1252 x 620 x 1358 mm

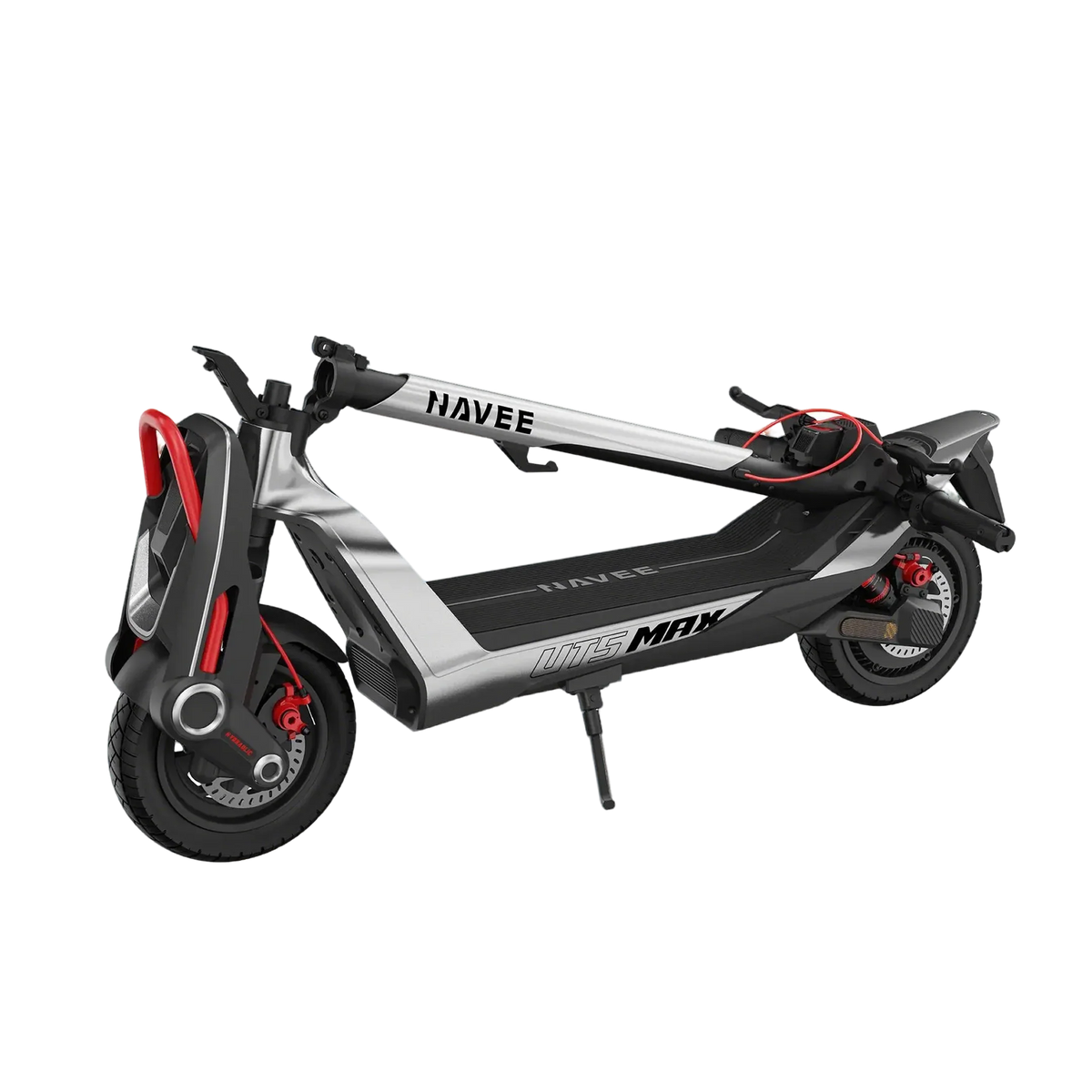

- Dimensions (folded): 1252 x 620 x 645 mm
- Deck width: 220 mm
- Handlebar width: 620 mm
- Net weight: 34 kg
- Gross weight: 40.5 kg
Brakes and suspension
- Braking system: hydraulic disc brake front and rear (130 mm) + EABS
- Suspension system: dual hydraulic suspension
- Wheels: 12-inch self-healing tubeless
- Trail: 86 mm
Lighting and other
- Headlight: 6 W, auto-dimming, 36 m range
- Brake light: 2 W
- Turn signals: 1.6 W on handlebar and rear
- Display: 3.5-inch LED screen
- Other features: Bluetooth lock, BMS battery management, hanging hook, speed limiting, TCS, 5 W USB Type-C output for external devices, ambient lighting
Vergelijkbare producten
Check your selection
NAVEE UT5 Max€899,99
Total
€899,99
Use on public roads
This product is allowed on public roads in Belgium and Luxembourg. In the Netherlands, use is only permitted on enclosed private property with the owner's permission.
NAVEE UT5 Max
NAVEE UT5 Max
Sale price€899,99
0
W
Engines
0
%
Maximum gradient
Up to
0
km
Range (at 9.3 mph)
Front and rear axle
0
mm
range
Dual hydraulic suspension front and rear
Dual 140 mm disc brakes with EABS
Supercar aesthetics from NAVEE Technologies
Aerodynamic body design
for driving stability and smooth operation
Airflow duct system
reduces airflow disturbances
Peak motor for extreme sensation
From city streets to rugged terrain and the track: the UT5 Max offers unstoppable power and control.
2,400 W
Max. power
39%
Climbing ability
TÜV Rheinland-certified range
The practical range has been certified by TÜV Rheinland and is based on optimized motor power, smart energy management, and reduced system resistance. Instead of simply increasing battery capacity, NAVEE enhances the vehicle's overall efficiency through system-wide optimization.
Chassis performance certified by TÜV Rheinland

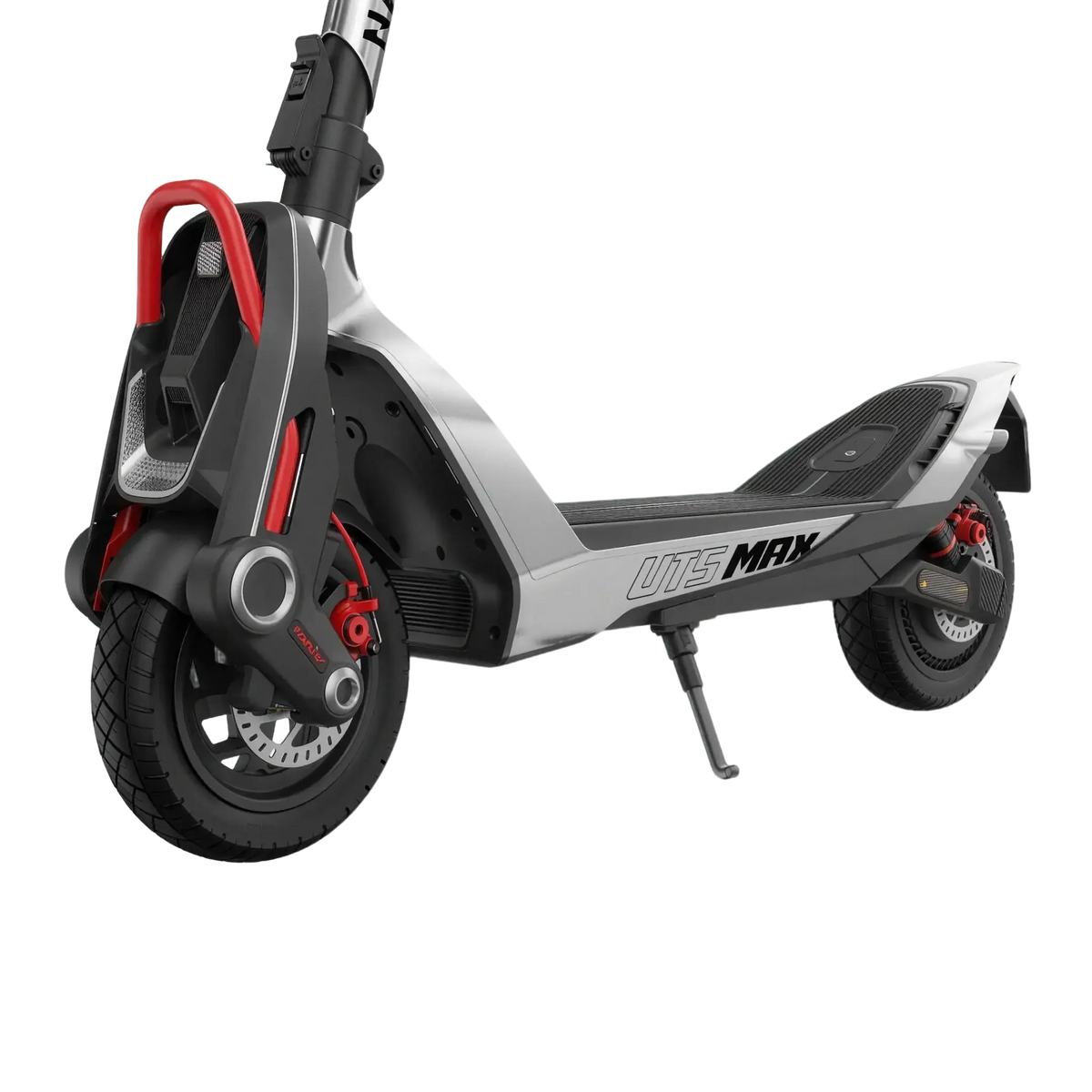

Dual hydraulic suspension system
for a smooth ride on all roads
Adjustable suspension
for discerning riders
Stiffen the suspension to improve off-road control and reduce bottoming out.
Safe braking, everywhere
With 130mm disc brakes front and rear, the UT5 Max ensures stable, predictable braking performance: from smooth roads to bumpy trails.
Thoughtful details, even more driving pleasure
In car quality
Steel frame
150 kg
Max. load
More than 500,000
cycles in the endurance test
One band. For every terrain.
The 12-inch tubeless off-road tires offer more stability, smoother overcoming of obstacles, and better puncture resistance under various driving conditions.
30%
more plenum volume
8%
smaller tire approach angle
4 mm
self-sealing leak protection

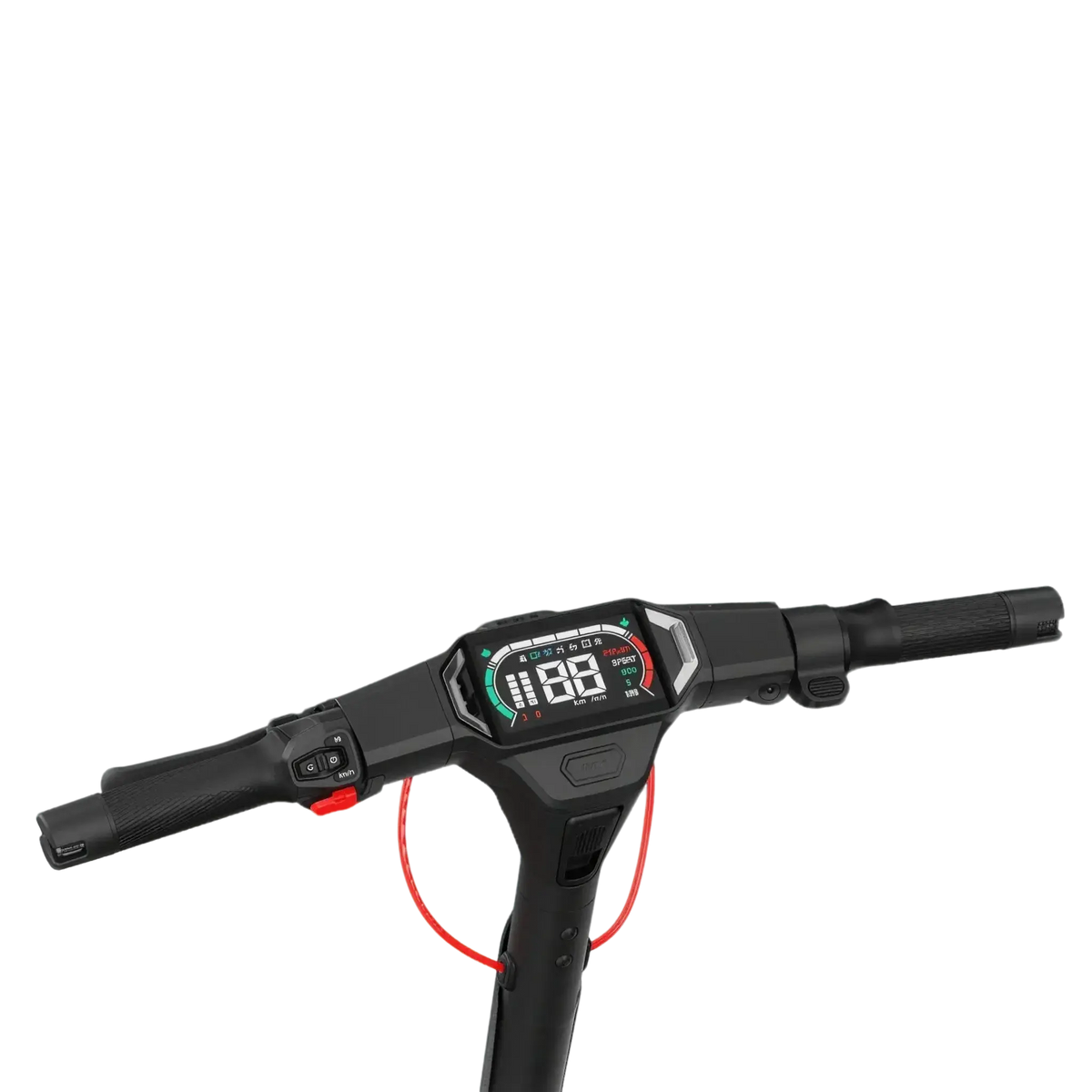

5-inch LED screen
LED screen
Contents of the box
Navee UT5 Max
Charger
Screws
Allen key
User manual
Specifications
NAVEE UT5 Max
Algemene informatie
Certificeringsmodel
UT5 Max
Max. belasting
150 kg
Max. klimvermogen
39%, bij 150 kg belasting 28%
Fabrieksinstelling max. snelheid
6 / 15 / 22 km/u
Geschikt voor
16 tot 50 jaar
Accu
Accuspanning
46,8 V
Accucapaciteit
716,04 Wh
Celtype
18650 (13s6p)
Celcapaciteit
15,3 Ah
Accugewicht
4200 g
Prestaties
Nominaal vermogen
500 W (EU-certificering). Wereldwijde opgave: 2 x 700 W
Max. vermogen
2400 W
Aandrijving
Dubbele motor
Actieradius (15 km/u)
100 km
Actieradius (20 km/u)
82 km
Actieradius (25 km/u)
65 km
Laden en functies
Oplaadtijd (standaard)
7 uur met 3,75 A lader
Oplaadtijd (snel)
2 uur met 10 A lader
Waterdichtheidsklasse
IPX6
Bluetooth
Ja
Smart app
NAVEE App
Apple Find My
Ja (iOS)
Afmetingen en gewicht
Afmetingen (uitgeklapt)
1252 x 620 x 1358 mm
Afmetingen (ingeklapt)
1252 x 620 x 645 mm
Deckbreedte
220 mm
Stuurbreedte
620 mm
Nettogewicht
34 kg
Brutogewicht
40,5 kg
Remmen en vering
Remsysteem
Hydraulische schijfrem voor en achter (130 mm) + EABS
Veringssysteem
Dubbele hydraulische vering
Wielen
12 inch self-healing tubeless
Naloop
86 mm
Verlichting en overig
Koplamp
6 W, automatisch dimmend, bereik 36 m
Remlicht
2 W
Richtingaanwijzers
1,6 W op stuur en achterzijde
Display
3,5 inch LED-scherm
Overige functies
Bluetooth-slot, BMS accubeheer, ophanghaak, snelheidsbegrenzing, TCS, 5 W USB Type-C uitgang voor externe apparaten, sfeerlicht
EAN
Niet opgegeven door fabrikant
Specifications according to NAVEE's official spec sheet. The nominal power of 500 W is the value on the EU type approval; NAVEE states 2 x 700 W worldwide for the same machine. Top speed varies by country due to local legislation; the factory setting of the EU version is listed above. The range is measured under ideal conditions with a 75 kg rider on flat terrain and varies in practice with weight, surface, temperature, and riding style.
